A high-performance 250kVA power solution featuring the reliable Cummins 6LTAA8.9-G2 engine, designed for industrial, commercial, and critical backup applications
Brand:
Dongfeng CumminsItem NO.:
ZC275Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：

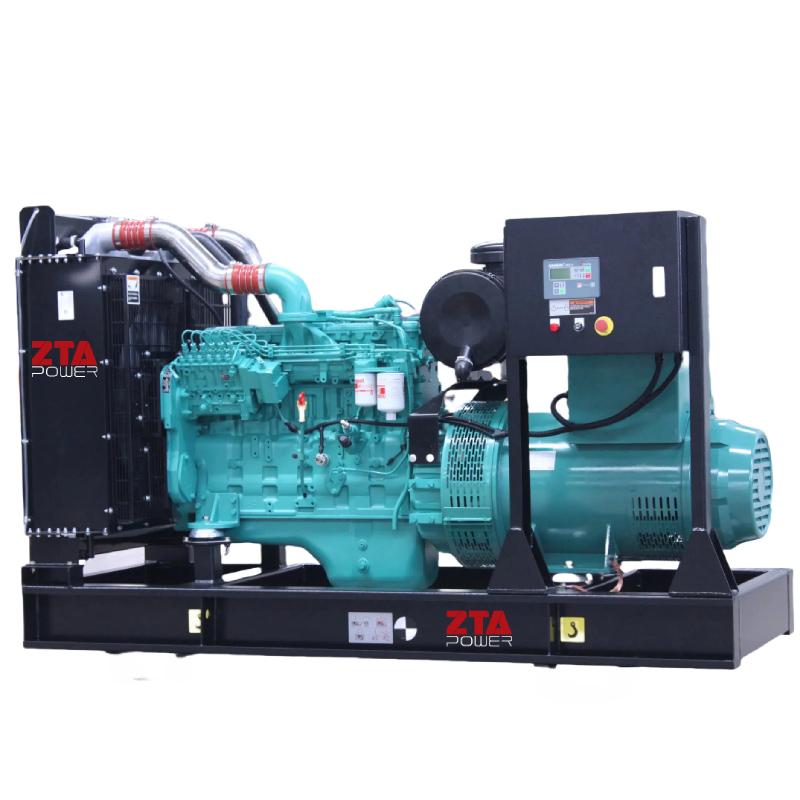

2700250kVA Cummins 6LTAA8.9-G2 Diesel Generator
Features
Generator Set Specification
| Prime Power | Standby Power | |
| Power(kw) | 200 | 220 |
| Power(KVA） | 250 | 275 |
| Rate Speed | 50hz/1500rpm, 60hz/1800rpm | |
| Standard Voltage | 400/230v | |
| Available Voltage | 415/240V,380/220V,220/127V | |
| Rate AT Power Factor | 0.8 | |
| Diamension | Open Size: 2570×1000×1650MM(L*W*H) | Silent Size: 3600×1200×1950MM(L*W*H) |
| Circuit Breaker | 400A | |
| Fuel Tank 8 Hours (L) | 460 |
Cummins 6LTAA8.9-G2 Diesel Engine Datasheet
Designed for small businesses, remote sites, and critical backup applications, this 3-cylinder generator combines Perkins' engineering heritage with low operating costs and easy maintenance.
| Engine Brand |
DONGFENG CUMMINS ENGINE Co.,LTD |
|
Engine Model |
6LTAA 8.9-G2 |
|
No. of Cylinders |
6 |
|
Cycle |
4 Cycle |
|
Induction system.. |
Turbocharged and Charge Air Cooled |
| Compression ratio |
16.6:1 |
|
Bore ×Stroke |
114 x 145 mm |
|
Displacement (L) |
8.9L |
|
Energy in power output (gross) Prime Power(kw) |
220 |
|
Energy in power output (gross) Standby Power(kw) |
240 |
| Fuel consumption at 100% full load (L/h) | 53 |
Leroy-Somer’s TAL alternators are specially designed to meet the power needs of telecom towers and commercial and industrial buildings. TAL is compatible with most engine brands.
| Leroy somer Alternator Model | TAL-A46-D |
| Prime Power | 200kw/250kva |
| Insulation Class | H |
| AVR Standard | R150(Shunt) |
|
Winding pitch |
2/3 (winding 6S) |
|
Number of wires |
6 |
| Protection | IP 23 |
| Insulation Class | H |
| Altitude |
≤ 1000 m |
| Number of Wires |
6 |
|
Overspeed |
2250 RPM |
|
Voltage Regulation |
± 1% |
| Pole | 4 |
|
Short-circuit current |
- |
|
Total Harmonic distortion THD (**) |
at no load < 3.5% - on load < 5% |
|
Waveform: NEMA = TIF (**) |
<50 |
|
Waveform: IEC = THF (**) |
< 2% |
| Optional |
- Filters on air inlet: derating 5% - Filters on air inlet and air outlet (IP 44): derating 10% - Winding protections for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Steel terminal box |
Advanced Control Panel
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| USB communication | √ | √ |
| CAN port | √ | √ |
| Event Log | 100 | 250 |
| Overspeed protection | √ | √ |
| Low oil pressure protection | √ | √ |
| High coolant temperature protection | √ | √ |
| Low fuel level alarm | √ | √ |
Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 40A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 36A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ⓶Main Circuit Breaker |
| ⓷ Cooling Radiator | ⓸8 hours Base Fuel Tank |
| ⓹One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⓺Starting Motor |
| ⓻Exhaust Silencer | ⓼Starting Batter |
| ⓽Float Battery Charger | ⓾Flange |
Optional Supply Scope
| ① ATS | ⓶ Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⓹Elec.coolant Heater |
⑥ Oil drain Pump |
|
⓻Trailer & Silent Canopy |
⓼Synchronization System |
1. Rigorous Pre-Shipment Testing
Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
Ensures product reliability
Honors our commitment to customers
Minimizes future service requirements
2. Comprehensive Warranty Coverage
Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)
Free Parts Replacement: During warranty period
Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost
24/7 Response: Immediate troubleshooting upon notification
3. Global OEM Service Network
For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support
Silent Type Generator Canopy Photo
