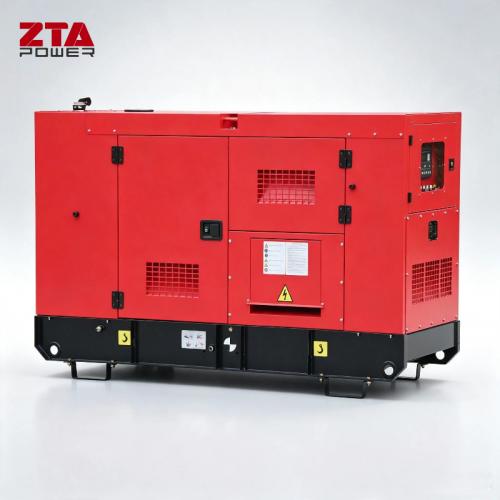

EPA Tier 3 Certified 20kVA 16kw Perkins 404D-22G Engine
The Perkins 404D-22G diesel generator delivers 16kW (20kVA) of reliable prime power in a compact, fuel-efficient package. With EPA Tier 3 emissions certification
Brand:
PerkinsItem NO.:
ZP22Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
950EPA Tier 3 Certified 20kVA 16kw Perkins 404D-22G Engine
The Perkins 404D-22G diesel generator With EPA Tier 3 emissions certification, this 4 cylinder engine combines low operating costs, quiet operation, and industrial durability – making it ideal for both standby and continuous power applications.
Generator Set Specification
| Prime Power | Standby Power | |
| Power(kw) | 16 | 17 |
| Power(KVA） | 20 | 22 |
| Rate Speed | 50hz/1500rpm, 60hz/1800rpm | |
| Standard Voltage | 400/230v | |
| Available Voltage | 415/240V,380/220V,220/127V | |
| Rate AT Power Factor | 0.8 | |
| Diamension | Open Size: 1510×750×1120MM(L*W*H) | Silent Size: 2000×1000×1250(STACKABLE CANOPY on 40ft HQ) |
| Circuit Breaker | 63A | |
| Fuel Tank 8 Hours (L) | 36 |
Perkins 404D-22G Diesel Engine Datasheet
| Engine Brand |
Perkins Engines Company Limited |
|
Engine Model |
404D-22G |
|
No. of Cylinders: |
4 Vertical In Line |
|
Cycle: |
4 Cycle |
| Compression ratio |
23.3:1 |
|
Bore ×Stroke |
84 x 100 mm |
|
Displacement (L) |
2.216L |
|
Energy in power output (gross) Prime Power(kw) |
18.4 |
|
Energy in power output (gross) Standby Power(kw) |
20.3 |
| Fuel consumption at 100% full load (L/h) | 5.3 |
Standards
Stamford industrial alternators meet the requirements of BS EN 60034 and the relevant section of other international standards such as BS5000, VDE 0530, NEMA MG1-32, IEC34, CSA C22.2-100 and AS1359. Other standards and certifications can be considered on request.
Quality Assurance
Alternators are manufactured using production procedures having a quality assurance level to BS EN ISO 9001.
| Stamford Alternator Model | S0L2-G1 |
| Prime Power | 68kw/85kva |
|
Excitation System |
|
| AVR Standard | AS540(Self-Excited / Aux winding) |
|
Voltage Regulation |
± 1% |
|
No Load Excitation Voltage (V) |
12 V |
|
Full Load Excitation Voltage (V) |
48V |
|
Electrical Data |
|
|
Insulation System |
H |
|
Stator Winding |
Double Layer Concentric |
|
Winding Pitch |
Two Thirds |
|
Winding Leads |
12 |
|
Winding Number |
311 |
|
Number of Poles |
4 |
|
IP Rating |
IP23 |
|
RFI Suppression |
EN 61000-6-2 & EN 61000-6-4, refer to factory for others |
|
Waveform Distortion |
NO LOAD < 2% NON-DISTORTING BALANCED LINEAR LOAD < 5.0% |
|
Short Circuit Ratio |
1/Xd |
|
Steady State X/R Ratio |
5.2 |
|
De-Rates |
All values tabulated above are subject to the following reductions: - 3% for every 500 meters by which the operating altitude exceeds 1000 meters above mean sea level - 3% for every 5°C by which the operational ambient temperature exceeds 40°C - For any other operating conditions impacting the cooling circuit please refer to applications Note: Requirement for operating in an ambient exceeding 60°C and altitude exceeding 4000 meters must be referred to applications. |
Advanced Control Systems
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
Digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| Languages can be stored in the module | 2 | 7 |
| RS232 port | -（Not available) | √ |
| RS485 port | ■*(*indicates that DSE857 communication module needs to be added.) | √ |
| Ethernet port | ■**(**indicates that DSE855 communication module needs to be added.) | ■**(**indicates that DSE855 communication module needs to be added.) |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | -（Not available) | √ |
Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 63A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 36A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ⓶Main Circuit Breaker |
| ⓷ Cooling Radiator | ⓸8 hours Base Fuel Tank |
| ⓹One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⓺Starting Motor |
| ⓻Exhaust Silencer | ⓼Starting Batter |
| ⓽Float Battery Charger | ⓾Flange |
Optional Supply Scope
| ① ATS | ⓶ Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⓹Elec.coolant Heater |
⑥ Oil drain Pump |
|
⓻Trailer & Silent Canopy |
⓼Synchronization System |
Silent Canopy Photo
