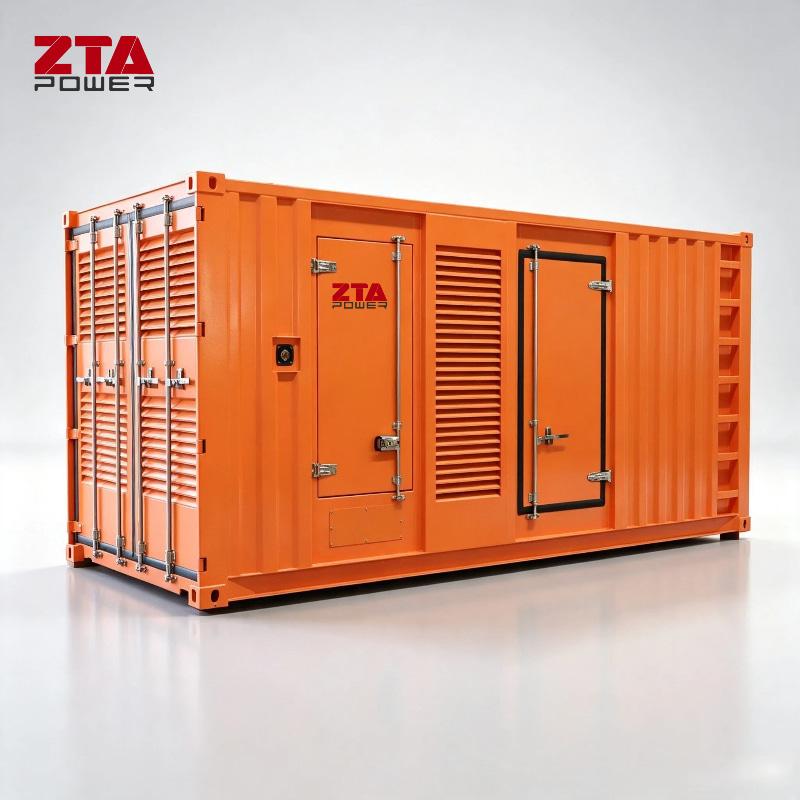

Industrial 800kVA Cummins KTA38-G2B Generator With 20FT Soundproof Enclosure

800kVA Cummins KTA38-G2B Diesel Generator

This power solution features a Cummins KTA38-G2B engine as the prime mover, coupled with a Stamford S6L1D-C41/HCI634G1/LVI634C1 alternator to form a complete generator set.

Generator Set Specification

Cummins KTA19-G2B  Diesel Engine Datasheet

Engine Component Specifications

Cylinder Block

Manufactured from high-strength alloy cast iron

Delivers superior rigidity with minimal vibration and noise

Cylinder Head

• 4-valve per cylinder design optimizes air/fuel mixture
• Individual heads per cylinder for easy maintenance
• Enhances combustion efficiency and reduces emissions

Camshaft

• Single camshaft ensures precise valve/injection timing
• Optimized cam profile reduces mechanical stress
• Improves reliability and service life

Crankshaft

• Forged high-strength steel construction
• Induction-hardened journals and fillets for maximum fatigue resistance
• Monolithic design ensures long-term durability

Piston

• Advanced aluminum casting technology
• ω-shaped crown and barrel-shaped skirt compensate for thermal expansion
• Maintains optimal cylinder fit under all operating condition



Stamford Brushless Alternator Specs

Standards

Stamford industrial alternators meet the requirements of BS EN 60034 and the relevant section of other international standards such as BS5000, VDE 0530, NEMA MG1-32, IEC34, CSA C22.2-100 and AS1359. Other standards and certifications can be considered on request.

Quality Assurance

Alternators are manufactured using production procedures having a quality assurance level to BS EN ISO 9001.



Stamford Alternator Model	S6L1D-D4
Prime Power	528kw/660kva
Excitation System
AVR Standard	MX341(PMG)
Voltage Regulation	± 1%
No Load Excitation Voltage (V)	16-15.2 V
Full Load Excitation Voltage (V)	59V
Electrical Data
Insulation System	H
Stator Winding	Double Layer Concentric
Winding Pitch	Two Thirds
Winding Leads	12/6
Winding Number	311/312
Number of Poles	4
IP Rating	IP23
RFI Suppression	EN 61000-6-2 & EN 61000-6-4, refer to factory for others
Waveform Distortion	NO LOAD < 1.5% NON-DISTORTING BALANCED LINEAR LOAD < 5.0%
Short Circuit Ratio	1/Xd
Steady State X/R Ratio	22.8
De-Rates	All values tabulated above are subject to the following reductions: - 3% for every 500 meters by which the operating altitude exceeds 1000 meters above mean sea level - 3% for every 5°C by which the operational ambient temperature exceeds 40°C - For any other operating conditions impacting the cooling circuit please refer to applications Note: Requirement for operating in an ambient exceeding 60°C and altitude exceeding 4000 meters must be referred to applications.



Advanced Control Panel

(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)

Digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.

Features such as auto-start/stop, load sharing, and remote monitoring.

	Deepsea 6120	Deepsea 7320
Display Language	18	18
USB communication	√	√
CAN port	√	√
Event Log	100	250
Overspeed protection	√	√
Low oil pressure protection	√	√
High coolant temperature protection	√	√
Low fuel level alarm	√	√

Circuit Breaker Specification

Manufacturer	Delixi/Chit/Schneider/ABB
Capacity	1600A
Pole	3P

Starting Battery Specification

Standard Supply Scope

Optional Supply Scope

Warranty

1. Rigorous Pre-Shipment Testing

Every generator set undergoes strict factory testing before shipment. Only units passing all performance benchmarks are approved for delivery. This protocol:
 Ensures product reliability
 Honors our commitment to customers
 Minimizes future service requirements

2. Comprehensive Warranty Coverage

Engine & Alternator Warranty: Aligns with OEM global policies (Cummins/Perkins/Stamford/etc.)

Free Parts Replacement: During warranty period

Lifetime After-Sales Support: Free technical assistance forever; post-warranty parts at cost

24/7 Response: Immediate troubleshooting upon notification

3. Global OEM Service Network

For brands like Cummins/Perkins with worldwide service centers:
Local technician dispatch available
Genuine parts guaranteed
Manufacturer-backed technical support

Silent Type Generator Canopy Photo
