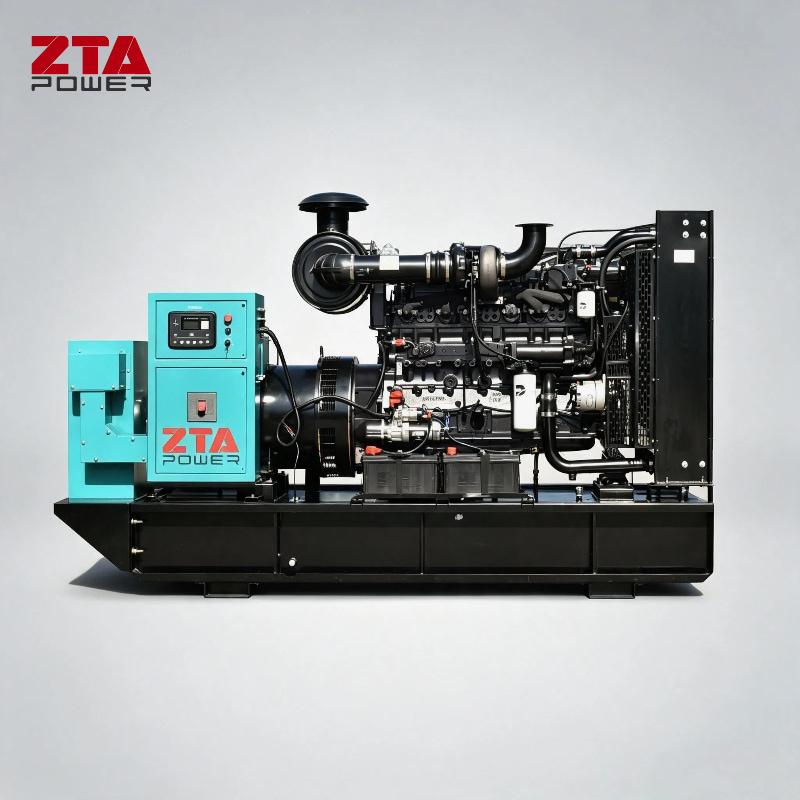

Prime Power Cummins Diesel Generator 275kw 344KVA Power By NTA855-G2A
Reliable Cummins NTA855-G2A diesel generator delivering 275kW (344kVA) prime power.
Brand:
Chongqing CumminsItem NO.:
ZC375Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
4-5 weeksWeight：
3100Prime Power 275kw 344KVA Cummins Diesel Generator Set Power By NTA855-G2A
The Cummins NTA855-G2A 275kW Diesel Generator is a heavy-duty prime power solution engineered for continuous operation in demanding industrial environments. Featuring Cummins' legendary N-Series engine platform, this genset delivers reliable performance with industry-leading fuel efficiency and durability.
| Place of Origin | Fujian, China |
| Brand Name | ZTA Power |
| Model Number | ZC375 |
| Speed | 50HZ/1500RPM, 60HZ/1800RPM |
| Starting system | Auto Start, remote start, 24V DC Electric Start |
| Type | Open Type/Silent type/Mobile Type |
| Weight | Open: 3100KG, Silent: 3850kg |
| Cooling System Type | Water-Cooled |
| Engine | Cummins NTA855-G2A |
| Alternator | Leroy somer TAL-A46-H/292KW(Stamford, Marathon,China Brand Alternator Also Supply) |
| Control Panel | UK Deepsea 6120 |
| Base Frame | 8 hours Base Fuel Tank |
| Warranty | 1 year or 1000hours whichever comes first |
| Packing | Plastic Foam |
Cummins Inc. of the United States is the world's largest manufacturer of diesel engines above 50 horsepower. During the 1990s, Cummins made substantial investments in Japan, China, and India, achieving remarkable growth.
Chongqing Cummins Engine Co., Ltd. is a Sino-American joint venture under Cummins Inc. Its flagship products include the Cummins N, K, and M11 series diesel engines, as well as diesel generator sets and marine power units, covering a power range of 145–1343 kW.
Cummins NTA855-G2A Diesel Engine Specs
| Cummins Diesel Engine Model |
NTA855-G2A |
|
Engine Output ( Prime Power) |
312kw |
|
Engine Output(Standby Power) |
343kw |
|
No. of Cylinder |
4-Cycle;In-line;6-Cylinde |
| Governor Type |
Electrical |
|
Aspiration |
Turbo Charged, After-Cooled |
| Bore×Stoke（mm) | 140×152 |
|
Displacement (L) |
14 |
| Fuel consumption at 100% full load (L/h) | 71.9 |
| Leroy somer Alternator Model | TAL-A46-H |
| Prime Power | 292kw/365kva |
| AVR Standard | R150(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V, 60HZ, 480/277V, 220/127V |
| Insulation Class | H |
| Number of Wires |
6 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
Advanced Control Systems
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need)
Integrated automatic voltage regulator (AVR) and digital control panels (e.g., Deepsea, ComAp) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 | Deepsea 7320 | |
| Over/under voltage protection | √ | √ |
| Over/under frequency protection | √ | √ |
| Phase rotation alarm | √ | √ |
| Overload /Low load protection | √ | √ |
| Overcurrent protection | √ | √ |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | - | √ |
Circuit Breaker Specification:
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 630A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 100A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ⓶Main Circuit Breaker |
| ⓷ Cooling Radiator | ⓸8 hours Base Fuel Tank |
| ⓹One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⓺Starting Motor |
| ⓻Exhaust Silencer | ⓼Starting Batter |
| ⓽Float Battery Charger | ⓾Flange |
Optional Supply Scope
| ① ATS | ⓶ Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⓹Elec.coolant Heater |
⑥ Oil drain Pump |
|
⓻Trailer & Silent Canopy |
⓼Synchronization System |
