The Cummins 6CTA8.3-G2 diesel generator delivers 150kW (188kVA) of robust prime and standby power for mission-critical applications
Brand:
PerkinsItem NO.:
ZP16Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
120015kVA Perkins 403A-15G2 Diesel Generator
The Perkins 403A-15G2 diesel generator delivers 15kVA (12kW) of reliable power in a compact, fuel-efficient package
Generator Set Specification
| Prime Power | 15kva/12kw | Engine Brand | Perkins Engines Company Limited |
| Standby Power | 16kva/13kw | Engine Model | 403A-15G2 |
| Frequency/Speed | 50hz/1500rpm, 60hz/1800rpm | Control Module(Standard) |
Deepsea 6120 ( 7320,Deif,Comap,Smartgen) |
| Rated Power Factor | 0.8 | Rated Current | 40A |
| Standard Voltage | 400V/230V | Circuit Breaker Capacity | 40A |
| Phases | 3 | Fuel Consumption @ 100% Load | 4.3L/H |
Perkins 403A-15G2 Diesel Engine Datasheet
Designed for small businesses, remote sites, and critical backup applications, this 3-cylinder generator combines Perkins' engineering heritage with low operating costs and easy maintenance.
| Engine Brand |
Perkins Engines Company Limited |
|
Engine Model |
403A-15G2 |
|
No. of Cylinders |
3Vertical inline
|
|
Cycle |
4 Cycle |
|
Induction system.. |
Naturally aspirated |
| Compression ratio |
22.5:1 |
|
Bore ×Stroke |
84 x 90 mm |
|
Displacement (L) |
1.496L |
|
Energy in power output (gross) Prime Power(kw) |
13.7 |
|
Energy in power output (gross) Standby Power(kw) |
15.1 |
| Fuel consumption at 100% full load (L/h) | 4.3 |
The LSA 40 alternator is designed to be suitable for typical generator applications, such as: backup, marine applications, rental, telecommunications, etc.
Compliant with international standards
The LSA 40 alternator conforms to the main international standards and regulations: IEC 60034, NEMA MG 1.32-33,Top of the range electrical performance
- 50 Hz: 220 V - 240 V and 380 V - 415 V (440 V)
- 60 Hz: 208 V - 240 V and 380 V - 480 V
- 50 Hz: 440 V (no. 7), 500 V (no. 9)
- 60 Hz: 380 V and 416 V (no. 8), 600 V (no. 9)
| Leroy somer Alternator Model | LSA40S3 |
| Prime Power | 12kw/15kva |
| Insulation Class | H |
| AVR Standard | D220(Shunt) |
|
Winding pitch |
2/3 (winding 6S) |
|
Number of wires |
12 |
| Protection | IP 23 |
| Insulation Class | H |
| Altitude |
≤ 1000 m |
| Number of Wires |
6 |
|
Overspeed |
2250 min-1 |
|
Voltage Regulation |
± 1% |
| Pole | 4 |
|
Short-circuit current |
- |
|
Total Harmonic distortion THD (**) |
at no load < 3% - on load < 5% |
|
Waveform: NEMA = TIF (**) |
<50 |
|
Waveform: IEC = THF (**) |
< 2% |
| Optional |
- Filters on air inlet: derating 5% - Filters on air inlet and air outlet (IP 44): derating 10% - Winding protections for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Steel terminal box |
Advanced Control Panel
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
Digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| Languages can be stored in the module | 2 | 7 |
| RS232 port | -（Not available) | √ |
| RS485 port | ■*(*indicates that DSE857 communication module needs to be added.) | √ |
| Ethernet port | ■**(**indicates that DSE855 communication module needs to be added.) | ■**(**indicates that DSE855 communication module needs to be added.) |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | -（Not available) | √ |
Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 40A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 36A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ⓶Main Circuit Breaker |
| ⓷ Cooling Radiator | ⓸8 hours Base Fuel Tank |
| ⓹One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⓺Starting Motor |
| ⓻Exhaust Silencer | ⓼Starting Batter |
| ⓽Float Battery Charger | ⓾Flange |
Optional Supply Scope
| ① ATS | ⓶ Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⓹Elec.coolant Heater |
⑥ Oil drain Pump |
|
⓻Trailer & Silent Canopy |
⓼Synchronization System |
Compact & Lightweight – Ideal for confined spaces and mobile applications
Fuel Efficient – Up to 40% better fuel economy vs. older generator models
Low Noise Operation – As low as 75 dB(A) at 7 meters (with optional canopy)
Simple Maintenance – Side-access service points with 500-hour oil change intervals
Smart Control Ready – Compatible with DeepSea 6110/7320 or ComAp InteliLite controllers

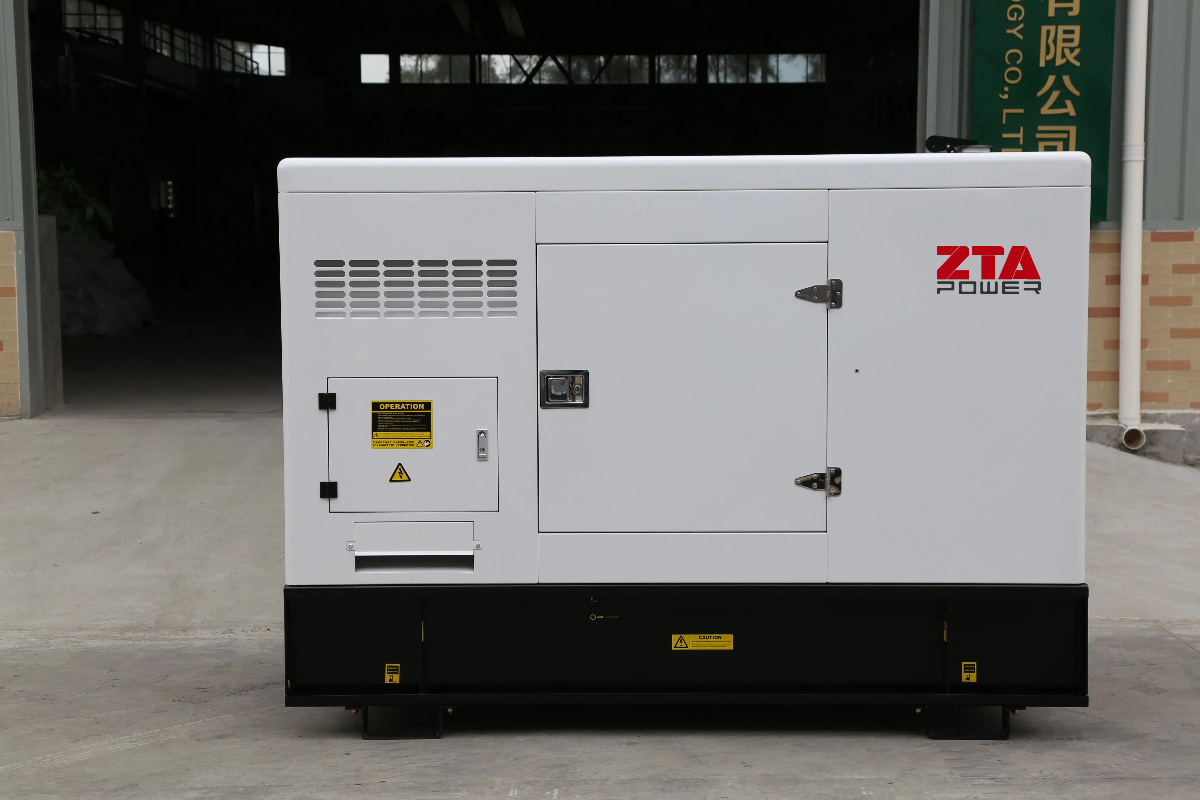

Silent Type Generator Canopy Photo
The Perkins 404D-22G diesel generator delivers 16kW (20kVA) of reliable prime power in a compact, fuel-efficient package. With EPA Tier 3 emissions certification
Details
The Perkins 2806A-E18TAG2 diesel generator delivers 520kW (650kVA) of prime power, designed for continuous, heavy-duty operation in demanding environments
Details
The Perkins Generator Set combines robust engineering with exceptional reliability, delivering high-performance power solutions for industrial, commercial, and emergency applications. Powered by Perkins’ renowned diesel engines, these generator sets are designed for fuel efficiency, durability, and compliance with global emission standards (e.g., Tier 4 Final)
Details
Perkins Diesel Generator Set The Perkins Diesel Generator Set, manufactured by Perkins Engines Company Limited, is a power generation solution widely utilized across various industries. Operating on diesel fuel, it converts chemical energy into mechanical energy via a Perkins diesel engine, which is then transformed into electrical energy output through an integrated generator. Renowned for reliability, efficiency, and adaptability, these generator sets are engineered to meet diverse power demands, from emergency backup to continuous prime power applications.
Details
Cummins Natural gas generator sets are widely recognized for their efficiency, reliability, and environmental benefits
Details
The Advanced Parallel Genset Control System The Deepsea 8610 Synchronization Panel is a sophisticated control system designed for automatic paralleling of multiple generator sets (2-32 units)
Details
MTU Engine Powered Diesel Generator Set are part of the diesel engine propulsion systems under the German Daimler-Chrysler Group. Their products are widely used in fields such as ships, heavy-duty vehicles, construction machinery, and railway locomotives, known for their high efficiency, energy savings, and environmental friendliness.
Details
Powered by Yangdong’s YD Series High-Quality diesel engines, with the durability and low fuel consumption. ZTA POWER Diesel Generator Set With Compeititve price with Hot Sale In the world Market.
Details
