The Perkins Generator Set combines robust engineering with exceptional reliability, delivering high-performance power solutions for industrial, commercial, and emergency applications. Powered by Perkins’ renowned diesel engines, these generator sets are designed for fuel efficiency, durability, and compliance with global emission standards (e.g., Tier 4 Final)
Brand:
PerkinsItem NO.:
ZP10Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentPrice Range:
3000 - 4000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：

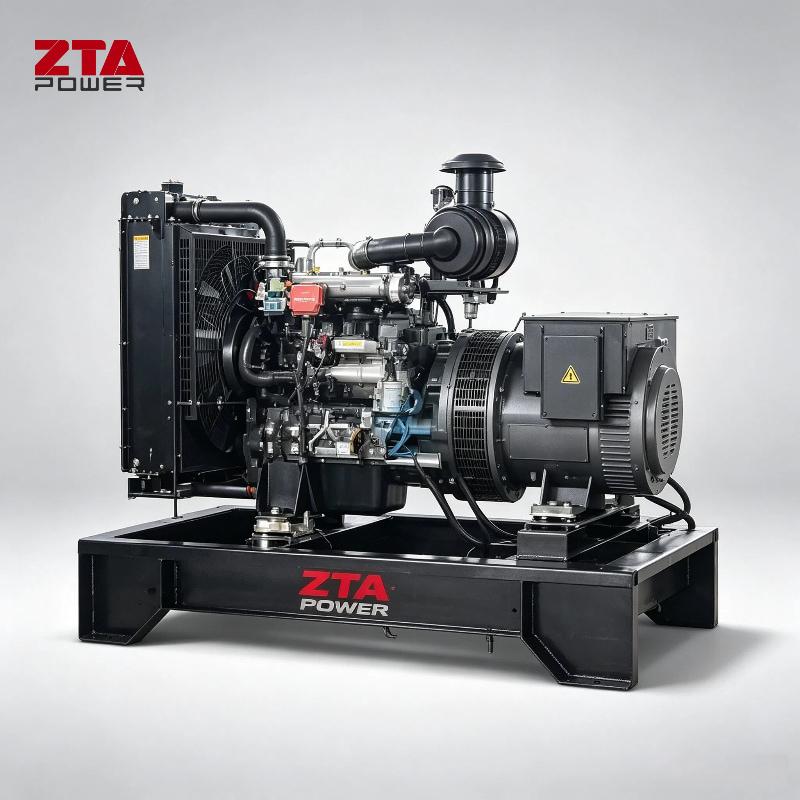

1000ZTA POWER Perkins Diesel Generator Set
PERKINS ENGINE & LEROY-SOMER GENERATOR SET
Low fuel consumption with stable performance.
Easy maintenance and reduced operational costs.
Environmentally compliant: Certain models meet EPA Tier II/III emission standards, ideal for prime or standby power.
| Prime Power | 7kw/9kva |
| Standby Power | 8kw/10kva |
| Frequency | 50hz/1500rpm,60hz/1800rpm |
| Power Factor | 0.8 |
| Open Genset Size （L×W×H) mm | 1370×750 ×1120 |
| Silent Genset Size （L×W×H) mm | 1900×1000×1100 |
The PERKINS ENGINE Integrates cutting-edge European and American technologies with high-strength wear-resistant materials, ensuring top-tier quality. Paired with the Leroy-Somer generator (produced by Emerson, a global industrial leader), the system delivers a compact design and exceptional efficiency. Rigorously tested with advanced computer-aided systems, it meets European and American technical standards
| Perkins Engine Model | 403D-11G |
| Cylinder | 4 |
| Bore×Stroke(mm) | 77×81 |
| Displacement | 1.131L |
| Aspiration |
Naturally aspirated |
| Fuel Consumption @ 100% Load | 2.7L/h |
Leroy somer Alternator Standard Configuration
Three-phase four-wire output with neutral point grounding.
Voltage: 380V/220V | Frequency: 50Hz/60Hz | Power Factor: 0.8 lagging.
Protection: Compliant with NEMA 1 and IP22 standards for dust and water resistance.
| Leroy somer Model | LSA40VS1 |
| AVR Standard | R220(Shunt), AREP Optional |
| Voltage Available | 480/277V, 400/230V, 380/220V,220/127V |
| Insulation Class | H |
| Number of Wires | 12 |
| Protection | IP 23 |
Control Panel
UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| USB communication | √ | √ |
| CAN port | √ | √ |
| Event Log | 100 | 250 |
| Overspeed protection | √ | √ |
| Low oil pressure protection | √ | √ |
| High coolant temperature protection | √ | √ |
| Low fuel level alarm | √ | √ |
Circuit Breaker
| Brand | Delixi or Chint |
| Type | MCCB |
| Amper | 63A |
RFQ
Troubleshooting Generator Control System Failures
DEEPSEA Control System FaultsIndication: Oil pressure fails to build after startup.
Checks:
1.Inspect the oil pressure alarm switch circuit for accidental grounding.
2.Verify oil pressure via the gauge. If extremely low, the oil pump may be faulty (replace if necessary).
Warning: Never bypass the oil pressure alarm to operate the generator—risk of severe engine damage.
Indication: Engine overheated or high-temperature alarm circuit grounded/damaged.
Checks:
1.Clean radiator fins and verify coolant levels after cooldown.
2.Test the coolant temperature alarm switch for faults.
1.3 "OVERSPEED" Indicator Illuminated
Indication: Controller detects excessive frequency (risk of engine runaway).
Action: The system auto-locks. Contact technicians to inspect governor or fuel delivery systems.
1.4 "CHARGE FAILURE" Indicator Illuminated
Indication: Alternator malfunction detected.
Checks:
1.Ensure the WL terminal on the alternator is connected to the DEEPSEA controller.
2.Test alternator output voltage.
