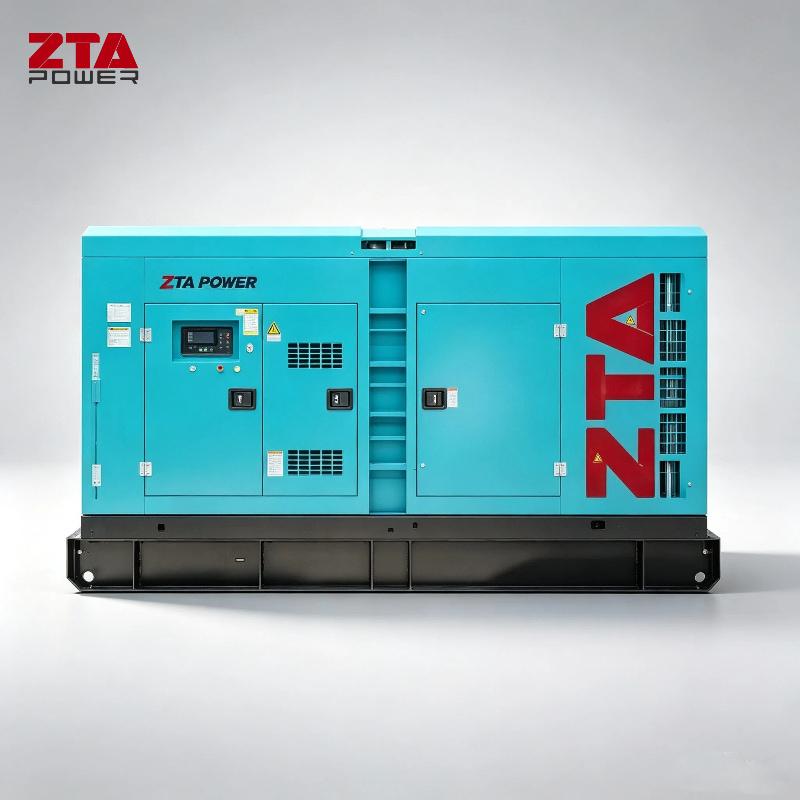

Soundproof Generator Set 100KVA Cummins 6BT5.9-G2
Due to the integration of soundproof enclosures and advanced mufflers, silent-type diesel generator sets operate with significantly reduced noise levels, making them ideal for noise-sensitive environments such as residential areas, hospitals, or offices.
Brand:
ZTAItem NO.:
ZC110Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
1000How Silent Generators Reduce Noise
Soundproof Enclosures:
Silent generators are housed in high-efficiency soundproofing materials (e.g., layered steel and acoustic foam) that absorb and block mechanical vibrations and engine noise from escaping.
Vibration Dampening:
Advanced vibration isolators and shock-absorbing mounts minimize mechanical component vibrations, a major source of noise.
Aerodynamic Design:
High-end models feature optimized airflow channels and fan blade designs to reduce turbulence-induced noise while maintaining cooling efficiency.
Smart Load Management:
Integrated intelligent control systems adjust power output based on real-time load demands, preventing overloading and reducing unnecessary noise during low-demand periods.
⇐ Prime Power 80kw/100kva Use Cummins Engine 6BT5.9-G2 With Leroy Somer LSA44.3S5 Alternator ⇒
|
Genset Specs |
|
| Prime Power |
80kw/100kva |
| Standby Power |
88kw/110kva |
|
Engine Specs |
|
| Cummins Diesel Engine Model |
6BT5.9-G2 |
|
Prime Power |
86kw |
|
Standby Power |
92kw |
|
No. of Cylinder |
6 |
| Governor Type |
Electric Governor |
|
Aspiration |
Turbocharged and Charge Air Cooled |
| Bore×Stoke（mm) | 102×120 |
| Total displacement(L) |
5.9 |
| Fuel consumption at 100% full load (L/h) | 22.3 |
| Alternator Specs |
|
| Alternator Model | Leroy somer LSA44.3S5 |
| Prime Power | 80kw/100kva |
| AVR Standard | R250(Shunt) |
| Voltage Available | 50HZ: 400/230V, 380/220V, 220/127V ; 60HZ: 480/277V, 440/ 254V,220/127V |
| Insulation Class | H |
| Number of Wires |
12 |
| Pole | 4 |
| Protection | IP 23 |
| Voltage Regulation | ± 0.5% |
| Options: | -F ilters on air inlet : derating 5%
- Filters on air inlet and air outlet (IP 44) : derating 10% - Winding protection for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Height fixing : H = 225 mm (option) with the order |
Advantages and Applications
Outdoor Activities:
Ideal for camping, outdoor events, or film production where quiet operation preserves the natural ambiance.
Commercial and Medical Facilities:
Ensure uninterrupted power for critical emergency equipment (e.g., hospital ventilators, data centers) without disturbing staff or patients.
Residential Use:
Suitable for backup power in noise-sensitive neighborhoods.
Choosing a Reliable Silent Generator
While silent generators offer clear benefits, selecting a trusted brand is crucial. ZTA POWER, with many years of expertise in generator manufacturing and sales, provides tailored solutions for diverse needs. Their products feature:
Proven noise reduction technology (as low as 70-85 dB at 7meter).
Robust build quality and compliance with international emission standards
Comprehensive after-sales support, including maintenance and spare parts.
Whether for emergency backup, outdoor adventures, or industrial use, ZTA POWER ensures reliable, quiet power solutions. Don’t miss the chance to explore their range!
