Prime Power Generator 520kw 650kVA Perkins 2806A-E18TAG2 Engine
The Perkins 2806A-E18TAG2 diesel generator delivers 520kW (650kVA) of prime power, designed for continuous, heavy-duty operation in demanding environments
Brand:
PerkinsItem NO.:
ZP700Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentProduct Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
3-4weeksWeight：
5700Prime Power 520kw 750kVA Perkins 2806A-E18TAG2 Engine Prime Power Generator
Built with Perkins’ renowned engineering excellence, this generator set combines high fuel efficiency, low emissions, and exceptional durability, making it ideal for industrial, commercial, and mission-critical applications.
Generator Set Specification
| Prime Power | Standby Power | |
| Power(kw) | 520 | 572 |
| Power(KVA） | 650 | 715 |
| Rate Speed | 50hz/1500rpm, 60hz/1800rpm | |
| Standard Voltage | 400/230v | |
| Available Voltage | 415/240V,380/220V,220/127V | |
| Rate AT Power Factor | 0.8 | |
| Diamension | Open Size: 3340×1550×2250MM(L*W*H) | Silent Size: 4000×1900×2230 |
| Circuit Breaker | 1250A | |
| Fuel Tank 8 Hours (L) | 1056 |
Perkins Diesel Engine 2806A-E18TAG2 Specification
The Perkins 2806A-E18TAG2 6-cylinder turbocharged diesel engine ensures high power output with low fuel consumption.
| Engine Brand |
Perkins Engines Company Limited |
|
Engine Model |
2806A-E18TAG2 |
|
No. of Cylinders: |
6 |
|
Cycle: |
4 stroke, compression ignition |
| Compression ratio |
14.5:1 |
|
Bore ×Stroke |
145 x 183 mm |
|
Cubic Capacity (L) |
18.13 |
|
Energy in power output (gross) Prime Power(kw) |
539.7 |
|
Energy in power output (gross) Standby Power(kw) |
592.7 |
| Fuel consumption at 100% full load (L/h) | 99 |
| Leroy somer Alternator Model | LSA49.3S4 |
| Prime Power | 528kw/660kva |
| Insulation Class | H |
| AVR Standard | D350(Shunt) |
|
Winding pitch |
2/3 (winding 6S) |
|
Number of wires |
6 (12 option) |
| Protection | IP 23 |
| Insulation Class | H |
| Altitude |
≤ 1000 m |
| Number of Wires |
6 |
|
Overspeed |
2250 min-1 |
|
Voltage Regulation |
± 0.25% |
| Pole | 4 |
|
Short-circuit current |
300% (3 IN) : 10s |
|
Total Harmonic distortion THD (**) |
at no load < 4% - on load < 4% |
|
Waveform: NEMA = TIF (**) |
<50 |
|
Waveform: IEC = THF (**) |
< 2% |
| Optional |
- Filters on air inlet: derating 5% - Filters on air inlet and air outlet (IP 44): derating 10% - Winding protections for harsh environments and relative humidity greater than 95% - Space heaters - Thermal protection for stator windings - Steel terminal box |
Advanced Control Systems
(UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand Etc.. Also Available Base on Customer Need)
Integrated automatic voltage regulator (AVR) and digital control panels (e.g., Deepsea, ComAp,) for precise monitoring and control.
Features such as auto-start/stop, load sharing, and remote monitoring.
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| Languages can be stored in the module | 2 | 7 |
| RS232 port | -（Not available) | √ |
| RS485 port | ■*(*indicates that DSE857 communication module needs to be added.) | √ |
| Ethernet port | ■**(**indicates that DSE855 communication module needs to be added.) | ■**(**indicates that DSE855 communication module needs to be added.) |
| Short circuit protection | √ | √ |
| Negative phase sequence protection | √ | √ |
| Earth fault protection | -（Not available) | √ |
Circuit Breaker Specification
| Manufacturer | Delixi/Chit/Schneider/ABB |
| Capacity | 1250A |
| Pole | 3P |
Starting Battery Specification
| Battery Voltage | 12V |
| Battery Capacity | 100A |
| Battery type | Free maintenance, sealed lead-acid type |
| Battery Quantities | 2 Pcs |
Standard Supply Scope
| ① Auto Control Panel | ⓶Main Circuit Breaker |
| ⓷ Cooling Radiator | ⓸8 hours Base Fuel Tank |
| ⓹One Set 3 Filters(Diesel Filter, Air Filter, Lub Oil Filter) Install On Generator Set | ⓺Starting Motor |
| ⓻Exhaust Silencer | ⓼Starting Batter |
| ⓽Float Battery Charger | ⓾Flange |
Optional Supply Scope
| ① ATS | ⓶ Fuel and water separator |
|
③ Auto Fuel Pump |
④ External daily fuel tank |
|
⓹Elec.coolant Heater |
⑥ Oil drain Pump |
|
⓻Trailer & Silent Canopy |
⓼Synchronization System |

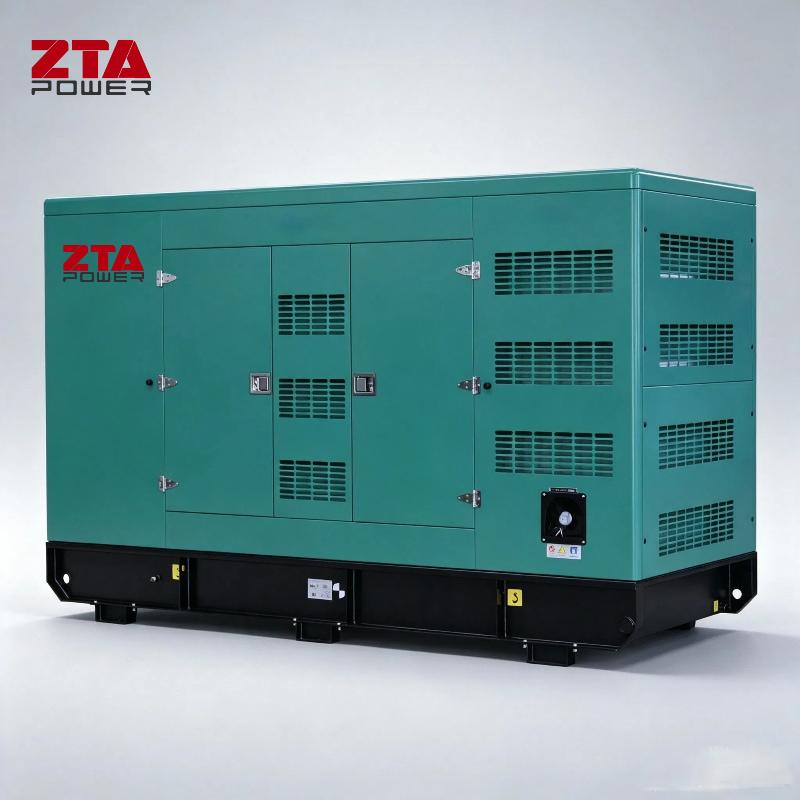

Silent Canopy Photo
