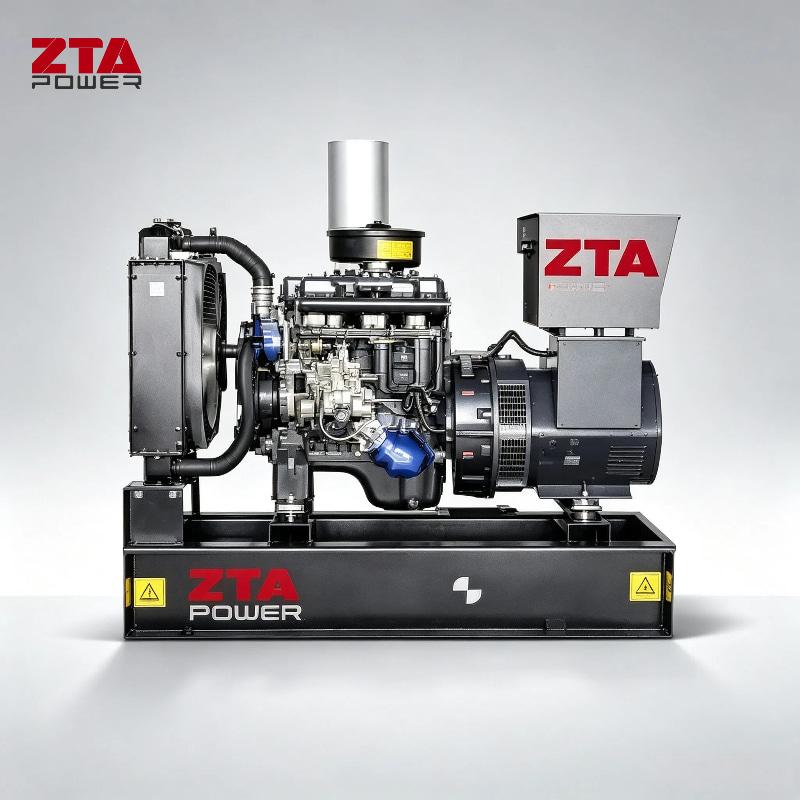

Diesel Generator Set 10KVA Yangdong YD380D Engine
Yangdong Power Generator Sets, manufactured by Jiangsu Yangdong Engine Co., Ltd., are renowned for their robust performance, fuel efficiency, and adaptability to various industrial and commercial applications. Designed to meet the needs of both prime and standby power generation, Yangdong generators are widely used in construction, agriculture, telecommunications, and emergency backup systems.
Brand:
ZTAItem NO.:
ZYD10Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentPrice Range:
2000 - 2300/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
360⇐ Yangdong 10KVA Diesel Generator Set Power By YD380D Engine ⇒
The company increased R & D efforts, relying on YTO Group National Technical Center's technical superiority and cooperate with the Southwest Research Institute, Austria AVL, FEV, Germany FEV and Japan YAMAHA, many of the world-renowned agencies, using electronically controlled fuel system EGR system, DPF system, and other international scientific and technological achievements, for a full range of technological transformation, have successfully completed to make diesel product research and development meet Euro Ⅲ, Ⅳ emission standard, and have complete independent intellectual property rights. Company is currently working on product development which can meet EuroⅤ emission standards.
| Model | ZY11 |
| Prime Power | 8KW/ 10KVA |
| Standby Power | 9kw/11kva |
| Frequency/Voltage | 50HZ: 400/230V,380/220V,220/127V; 60HZ: 480/277V,440/254V,220/127V |
| Power Factor | 0.8 Or 1.0 |
| Optional | ATS And Synchronize Panel Also Supply |
| Type | Open Or Silent Type |
⇐ The Yangdong Diesel ENGINE Datasheet ⇒
YANGDONG CO.,LTD with "integrity, pragmatic, innovative" concept to provide high-tech, high-performance, high-quality products and first class service for the purpose, adhere to scientific and technological innovation, to become experts in power integrated solution.
| Yangdong Diesel Engine Model | YD380D |
| Type | Vertical,water cooling, four stroke |
| Combustion chamber type | Direct injector |
| Number of cylinders | 3 |
| Bore×Stoke（mm) | 80×90 |
| Total displacement(L) |
1.357 |
| Min.specific fuel consumption at full load | ≤3.13L/h |
⇐ ZTA Power Alternator ⇒
1. Stator• Core Material:
• Windings:
• Frame:
Constructed from cast iron or aluminum alloy for structural rigidity and effective heat dissipation.
• Core Material:
Silicon steel laminations similar to the stator, optimized for magnetic flux distribution.
• Windings:
• Shaft:
Forged steel shaft with precision machining for balanced rotation and minimal vibration.
• Poles and Dampers:
Salient poles with integrated damper bars to reduce harmonic distortion and improve stability.
| ZTA Alternator Model | ZA-8-4/8KW |
| AVR Standard | Included |
| Voltage Available | 480/277V, 400/230V, 380/220V,220/127V |
| Insulation Class | H |
| Number of Wires | 6 |
| Protection | IP 23 |
| Space Heater | Need on Extra Cost |
⇐ Control Panel ⇒ (UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| USB communication | √ | √ |
| CAN port | √ | √ |
| Event Log | 100 | 250 |
| Overspeed protection | √ | √ |
| Low oil pressure protection | √ | √ |
| High coolant temperature protection | √ | √ |
| Low fuel level alarm | √ | √ |
⇐ Circuit Breaker ⇒
| Standard | Included |
| Type | 3P/4P |
| Amper | 63A |
In 1984, Yangdong have successfully developed first 480 vehicle diesel engine, after 30 years of development, has become the largest multi-cylinder diesel production base of small, multi-cylinder diesel engine, with an annual output 300 000 capacity diesel engine ,yangdong have 18 kinds of basic types of multi-cylinder diesel engine, bore from 80-110mm, displacement from 1.3-4.5L, power cover 10-105kW. Products are suitable for passenger cars, commercial vehicles, low-speed trucks, tractors, generator set,fire fighting pump, water pump,combines, construction machinery, marine units, air conditioning units and other supporting bus.
Industrial: Powering construction sites, mining operations, and manufacturing facilities.
Agriculture: Supporting irrigation systems, grain processing, and farm equipment.
Telecommunications: Backup power for base stations and communication towers.
Emergency Power: Hospitals, data centers, and commercial buildings.
Powered by Yangdong’s YD Series High-Quality diesel engines, with the durability and low fuel consumption. ZTA POWER Diesel Generator Set With Compeititve price with Hot Sale In the world Market.
