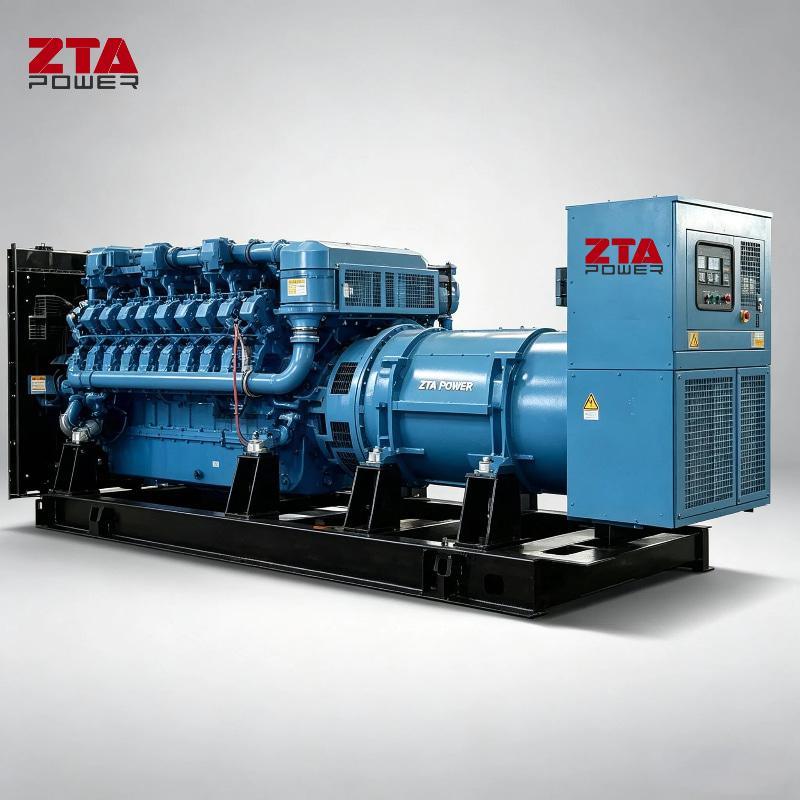

Diesel Generator Set 1250kva Power By MTU 12V4000G23RF Engine
The MTU Generator Set is a premium power solution engineered by Rolls-Royce Power Systems, renowned for its exceptional performance, reliability, and advanced technology. Designed to meet the highest industry standards, MTU generator sets are trusted by customers worldwide for critical applications where uninterrupted power is essential.
Brand:
ZTAItem NO.:
ZM1375Order(MOQ):
1Payment:
T/T 30%, 70% Before shipmentPrice Range:
160000 - 180000/$1Product Origin:
ChinaShipping Port:
Xiamen, ChinaLead Time：
2-4 weeksWeight：
8600MTU Generator Set 1000KW/1250KVA Prime Power
MTU generator sets are synonymous with performance, reliability, and innovation. With over a century of engineering expertise, MTU has established itself as a global leader in power generation. Whether you need a dependable power source for critical operations or a robust solution for everyday use, MTU generator sets deliver unmatched quality and peace of mind.
| Prime Power | 1000KW/1250KVA |
| Standby Power | 1100kw/1375kva |
| Frequency | 50hz/1500rpm: 220-440V,60HZ/1800RPM,110-480v |
| Power Factor | 0.8 |
| Open Genset Size （L×W×H) mm | 1780*730*1285 |
| Silent Genset Size （L×W×H) mm | 2250*1100*1550 |
The MTU Diesel ENGINE Datasheet
| MTU Diesel Engine Model | 12V4000G23RF |
| Cylinder | 12V |
| Bore×Stroke(mm) | 98×113 |
| Displacement | 65L |
| Aspiration |
Diesel, water cooled, Turbo charged Type & intercooled |
| Fuel Consumption @ 100% Load | 13.8L/h |
Marathon Alternator
We can supply Leroy somer, Stamford, Marathon,Meccalte and other China brand alternator base on Customer need in different price.
STANDARDS
MAGNAMAX® synchronous AC generators meet the main international standards and regulations: NEMA MG1, IEC60034 and GB755.
MAGNAMAX® generators are designed, manufactured and marketed in an ISO 9001 environment.
| Marathon Alternator Model | MX-1030-4 |
| AVR Standard | Included(PMG Also can supply) |
| Voltage Available | 480/277V, 400/230V, 380/220V,220/127V |
| Insulation Class | H |
| Number of Wires | 12 |
| Protection | IP 23 |
| Space Heater | Need on Extra Cost |
Control Panel
UK Deepsea 6120,Smartgen 6120,Comap AMF 25,Deif Brand ... ETC Also Available Base on Customer Need
| Deepsea 6120 | Deepsea 7320 | |
| Display Language | 18 | 18 |
| USB communication | √ | √ |
| CAN port | √ | √ |
| Event Log | 100 | 250 |
| Overspeed protection | √ | √ |
| Low oil pressure protection | √ | √ |
| High coolant temperature protection | √ | √ |
| Low fuel level alarm | √ | √ |
Circuit Breaker
| Brand | MCCB |
| Type | 3P |
| Amper | 100A |
Key Features
1.Cutting-Edge Engine Technology:
MTU generator sets are powered by state-of-the-art diesel or gas engines, delivering high efficiency, low fuel consumption, and reduced emissions.
2.Exceptional Durability:
Built with robust materials and precision engineering, MTU generator sets are designed to operate reliably in the most challenging environments, ensuring long service life.
3.High Power Output:
Available in a wide range of power ratings, MTU generator sets cater to diverse needs, from small-scale applications to large industrial and commercial projects.
4.Advanced Control Systems:
Equipped with intelligent control panels, MTU generator sets offer seamless monitoring, automation, and remote management capabilities for optimal performance and ease of use.
5.Low Noise and Vibration:
Innovative design features ensure quiet operation and minimal vibration, making MTU generator sets suitable for noise-sensitive environments.
6.Comprehensive Safety Features:
Built-in safety mechanisms, such as automatic shutdown in case of low oil pressure or overheating, protect the generator and connected equipment.
7.Global Support and Service:
Backed by Rolls-Royce's worldwide network of service centers, MTU generator sets benefit from expert technical support, genuine spare parts, and reliable maintenance services.
MTU Engine Powered Diesel Generator Set are part of the diesel engine propulsion systems under the German Daimler-Chrysler Group. Their products are widely used in fields such as ships, heavy-duty vehicles, construction machinery, and railway locomotives, known for their high efficiency, energy savings, and environmental friendliness.
